VIBRATIONS-BESCHICKUNGSANLAGEN SERIE S
Größentabelle
Vibrations-Beschickungsanlagen | UN-COALER®-Aktivierungs-/Beschickungsanlagen | Technische Daten | Teile und Wartung

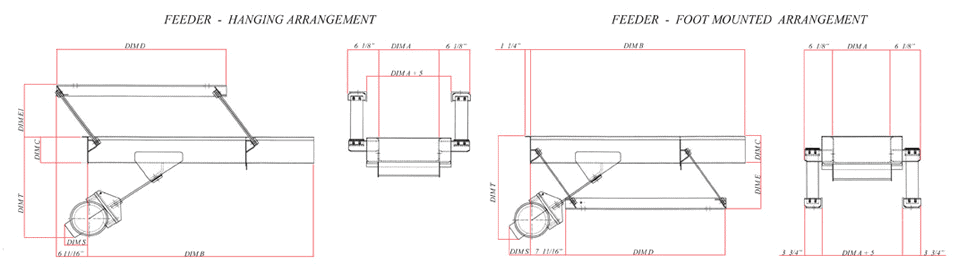

| Modell | MASS A | MASS B | MASS C | MASS D | MASS E | MASS E1 | Pannendicke | KW | Gewicht der Einheit | MASS S | MASS T | Kapazität [Fuß³/min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6-3 | 6 | 36 | 4 | 24 | 10,375 | 11,6875 | 0,1196 | 0,16 | 135 | 9 | 20,375 | 4 |
| 6-4 | 6 | 48 | 4 | 36 | 10,375 | 11,6875 | 0,1196 | 0,16 | 149 | 2,75 | 20,375 | 4 |
| 6-5 | 6 | 60 | 4 | 46 | 10,375 | 11,6875 | 0,1196 | 0,16 | 165 | -3,25 | 20,375 | 4 |
| 12-3 | 12 | 36 | 6 | 24 | 10,375 | 11,6875 | 0,1196 | 0,36 | 204 | 10,875 | 23,125 | 8 |
| 12-4 | 12 | 48 | 6 | 36 | 10,375 | 11,6875 | 0,1196 | 0,36 | 222 | 4,875 | 23,125 | 8 |
| 12-5 | 12 | 60 | 6 | 46 | 10,375 | 11,6875 | 0,1196 | 0,36 | 242 | -1,125 | 23,125 | 8 |
| 12-6 | 12 | 72 | 6 | 56 | 10,375 | 11,6875 | 0,1196 | 0,36 | 262 | -7,125 | 23,125 | 8 |
| 18-4 | 18 | 48 | 8 | 36 | 10,375 | 11,6875 | 0,1196 | 0,36 | 246 | 5,875 | 25,125 | 12 |
| 18-5 | 18 | 60 | 8 | 46 | 10,375 | 11,6875 | 0,1196 | 0,36 | 270 | -0,125 | 25,125 | 12 |
| 18-6 | 18 | 72 | 8 | 56 | 10,375 | 11,6875 | 0,1196 | 0,36 | 294 | -6,125 | 25,125 | 12 |
| 18-7 | 18 | 84 | 8 | 66 | 10,375 | 11,6875 | 0,1196 | 0,36 | 318 | -12,125 | 25,125 | 12 |
| 24-4 | 24 | 48 | 8 | 36 | 10,375 | 11,6875 | 0,1196 | 0,69 | 312 | 6,0625 | 25,4375 | 16 |
| 24-5 | 24 | 60 | 8 | 46 | 10,375 | 11,6875 | 0,1196 | 0,69 | 338 | 0,0625 | 25,4375 | 16 |
| 24-6 | 24 | 72 | 8 | 56 | 10,375 | 11,6875 | 0,1196 | 0,69 | 365 | -5,9375 | 25,4375 | 16 |
| 24-7 | 24 | 84 | 8 | 66 | 10,375 | 11,6875 | 0,1196 | 0,69 | 391 | -11,9375 | 25,4375 | 16 |
| 24-8 | 24 | 96 | 8 | 76 | 10,375 | 11,6875 | 0,1196 | 0,69 | 418 | -17,9375 | 25,4375 | 16 |
| 30-4 | 30 | 48 | 10 | 36 | 10,375 | 11,1875 | 0,1875 | 0,75 | 418 | 7,0625 | 27,4375 | 20 |
| 30-5 | 30 | 60 | 10 | 46 | 10,375 | 11,1875 | 0,1875 | 0,75 | 462 | 1,0625 | 27,4375 | 20 |
| 30-6 | 30 | 72 | 10 | 56 | 10,375 | 11,1875 | 0,1875 | 0,75 | 505 | -4,9375 | 27,4375 | 20 |
| 30-7 | 30 | 84 | 10 | 66 | 10,375 | 11,1875 | 0,1875 | 0,75 | 549 | -10,9375 | 27,4375 | 20 |
| 30-8 | 30 | 96 | 10 | 76 | 10,375 | 11,1875 | 0,1875 | 0,75 | 592 | -16,9375 | 27,4375 | 20 |
| 36-5 | 36 | 60 | 12 | 46 | 10,375 | 11,1875 | 0,1875 | 0,75 | 517 | 2,0625 | 29,4375 | 24 |
| 36-6 | 36 | 72 | 12 | 56 | 10,375 | 11,1875 | 0,1875 | 0,75 | 567 | -3,9375 | 29,4375 | 24 |
| 36-7 | 36 | 84 | 12 | 66 | 10,375 | 11,1875 | 0,1875 | 0,75 | 617 | -9,9375 | 29,4375 | 24 |
| 36-8 | 36 | 96 | 12 | 76 | 10,375 | 11,1875 | 0,1875 | 0,75 | 667 | -15,9375 | 29,4375 | 24 |
