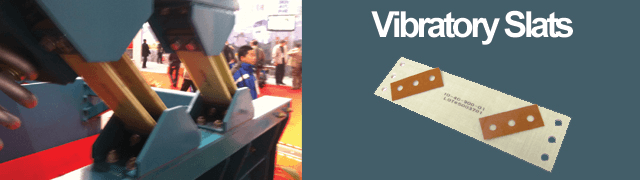

General Kinematics Plastic / Scotchply / Fiberglass / Steel Slats
Product Description:
General Kinematics custom made plastic, scotchply, fiberglass, or steel slats help guide your vibratory machine while providing the vibrating spring rate required to move your machine. Slats are custom engineered for your application, and can be supplied as a stand alone slat or as an entire kit including hardware and spacers.
GK stocks many custom sizes for immediate delivery. If we don’t have it on the shelf, we can custom cut slats to fit your machine dimensions and requirements.
Contact GK for more information about replacement shaker slats for vibratory equipment.
Reference part numbers for non-GK equipment:
Company | Part Number | Length | Thickness | Width |
Allen Machinery | D2986113 | 9″ | 1/4″ | 3″ |
Carrier | 20022 | 10 1/2″ | 1/4″ | 5 1/2″ |
Carrier | 20044 | 10 1/2″ | 1/4″ | 5 1/2″ |
Carrier | 20521 | 10 1/2″ | .17″ | 5 1/2″ |
Carrier | 20521-A | 10 1/2″ | .16″ | 5 1/2″ |
Carrier | 20521-AG | Same as 20521-A with SYNTHANE Gaskets | ||
Carrier | 20621-G | Same as 20521 with SYNTHANE Gaskets | ||
Carrier | 21013 | 19″ | 5/16″ | 5 1/2″ |
Carrier | 21019 | 19″ | .43″ | 5 1/2″ |
Carrier | 21020 | 19″ | .43″ | 5 1/2″ |
Carrier | 22050 | 19″ | 5/16″ | 2″ |
Carrier | 22065 | Same as 22050 but for high temp | ||
Carrier | 22194 | 19″ | 5/16″ | 3″ |
Carrier | 22195 | Same as 22194 but for high temp | ||
Carrier | 22196 | 19″ | .43″ | 2″ |
Carrier | 22051 | 19″ | 1/8″ | 2″ |
Carrier | 22051-A | Same as 22051 but with gaskets | ||
Carrier | 22051-B | 19″ | 1/8″ | 2″ |
Carrier | 22051-C | Same as 22051-B but with gaskets | ||
Carrier | 22094 | 19″ | 1/8″ | 3″ |
Carrier | 22094-A | Same as above but with gaskets | ||
Carrier | 19 1/2″ | 0.435 | 5 1/2″ | |
FMC | 298-145-1 | |||
FMC | 700178 | 13 3/4″ | 1/4″ | 6″ |
Jeffrey | 608551 (LMV) | 9 1/2″ | 0.22 | 5″ |
Jeffrey | 609220 (mmv) | 17 1/2″ | 7/16″ | 5 1/” |
Jeffrey | 609226 (hmv) | 22″ | .72″ | 5 1/2″ |
Machine & Conveyor | 13″ | .27″ | 3″ | |
Machine & Conveyor | 13″ | .27″ | 2″ | |
Machine & Conveyor | 7 3/4″ | 1/4″ | 2″ |
