DURO-DECK™ Pin Installation

GK Home > Industrial Machine Parts
Categories

Duro-Deck™

GKParts.com

Pin installation deck
Rocks on screen deck media
screen media top and bottom
pin installation Deck

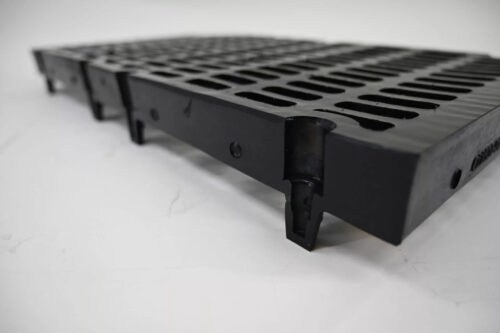

Pin Installation Style decks are available in polyurethane and rubber with a variety of opening shapes. GK’s easy-install modular panel system allows for easy replacement of high-wear areas without the need to replace the entire screen deck. Pin installation utilizes less space, providing up to 15% greater open area and a more secure panel fit when compared to other installation methods.



Features:

  • Ease of installation.
  • Up to 15% more open area.
  • Modular system allows you to only replace wear areas when needed.
  • Mechanically fastened for a secure fit.
  • Highly customizable.

Ask the Experts

Technical Info

Materials:

Polyurethane

Rubber

Durometer:

Rubber: 40& 65 durometer

Urethane: 83 & 90 durometer

Panel Size:

12″ X 12″ and 12″ X 24″

12″ X 48″ and Custom Available

Thickness:

1″ to 3.5″

Opening Shape:

Slot

Round

Square

Open Area:

20% – 45% Varying on Application

Opening Size:

0.1mm – 4.0″

Applications

Gold
Iron Ore
Sand
Minerals
Copper
Iron ore screening with slag label
