CD-MAX™ Recycling Systems

general-kinematics-cd-express

Nothing processes more than the CD-MAX™ Recycling Systems from General Kinematics. Upsizing from the CD-EXPRESS®, the CD-MAX™ Recycling System provides an additional GK primary screen to handle extreme throughput and maximum tonnage of up to 750 yds. per hour (573 m3 / hr.) or more.

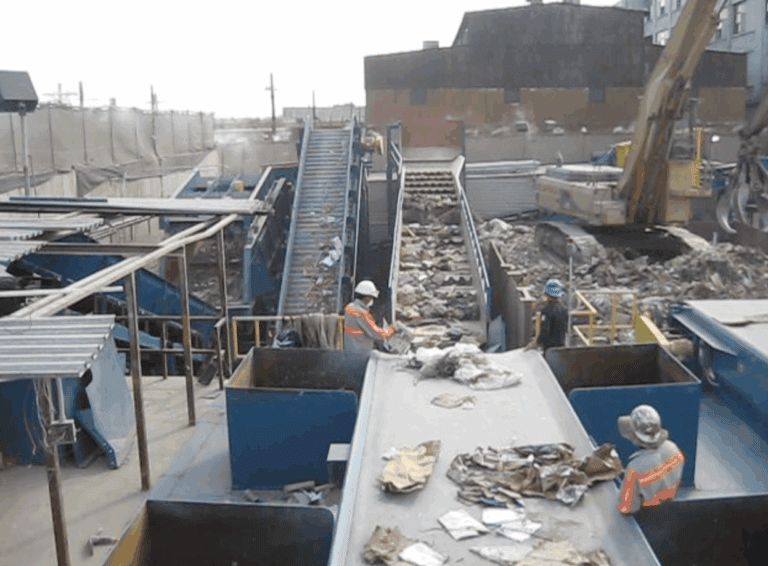

The heart of the CD-MAX™ Recycling System starts with initial separation using General Kinematics proven vibratory FINGER-SCREEN™ Primary Screen technology. From there, material is split into two separate sorting lines, A-Line for the overs and B-Line for the unders. On the A-Line, larger material is manually sorted and recovered. On the B-Line, metals are removed from the unders fraction and fines are removed with GK’s secondary vibratory screen. Additional cleaning of the heavies commodity is achieved with General Kinematics vibratory DE-STONER® Air Classifier. Optional processing includes optical sorting or further fines and lights processing on the C-Line and D-Line. Contact GK’s Recycling specialists for more information.

When you need serious sorting capabilities, go with the MAX… CD-EXPRESS® Recycling Systems from GK.

Features:

    • FINGER-SCREEN™ Primary Screen for primary sorting of material.
    • Direct loading on to the screen.
    • Optional apron conveyor for elevating product to pick station.
    • Recovery of:
      • Wood. Used as fuel or converted to landscape mulch.
      • Concrete, bricks, rock and aggregate. Reused as construction fill or recycled into new concrete.
      • Dirt and fines. Accepted as landfill cover.
      • Metals, ferrous and nonferrous. Sold as valuable scrap.
      • Cardboard. One of the higher valued commodities.
      • Plastics. Depending on the markets.
      • Future commodities… System flexibility to allow for potential market shifts
    • Heavy-Duty pick belt and sorting bins.
    • Low feed system: Low feed system includes vibratory feeder and inclined belt to enable system loading with front end loader or skid steer.
    • Optional platform canopy: Protect your workers from weather and the elements.
    • Cross belt with magnet: For automated removal of metallics from waste stream.
