VIBRA-MAX® Motor Line

Categories

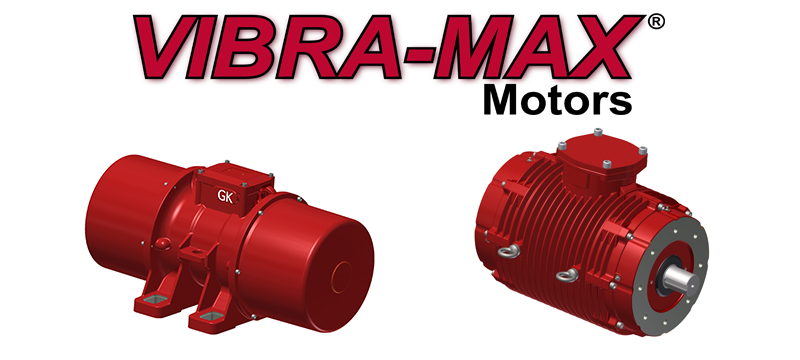

General Kinematics line of proprietary motors, VIBRA-MAX® Motors are designed to withstand the substantial G-Forces of Two-Mass vibratory equipment, which are greater than found in typical brute force vibrating applications.

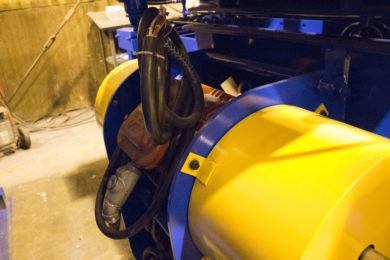

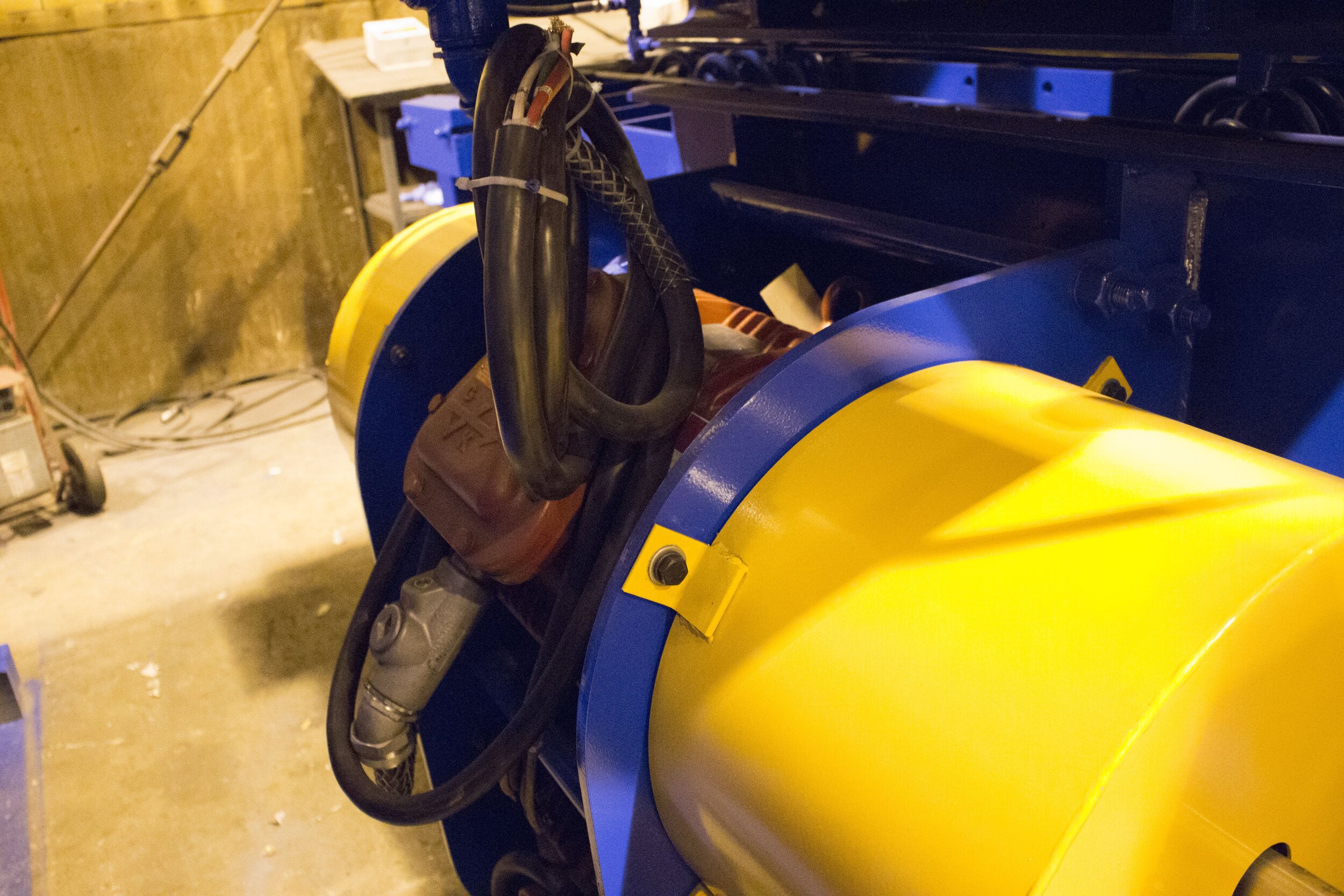

Double C-Flange Motor Features:

After years of innovation and development, GK’s Double C-Flange Motor is one of a kind.  This motor is specifically designed for vibratory equipment with a double c-flange mounting configuration. Other features include:

  • Efficient annular cooling fin design.
  • Extended L-10 service life bearings.
  • Direct replacement / multi-position.
  • High load responsive.
  • Easy maintenance.

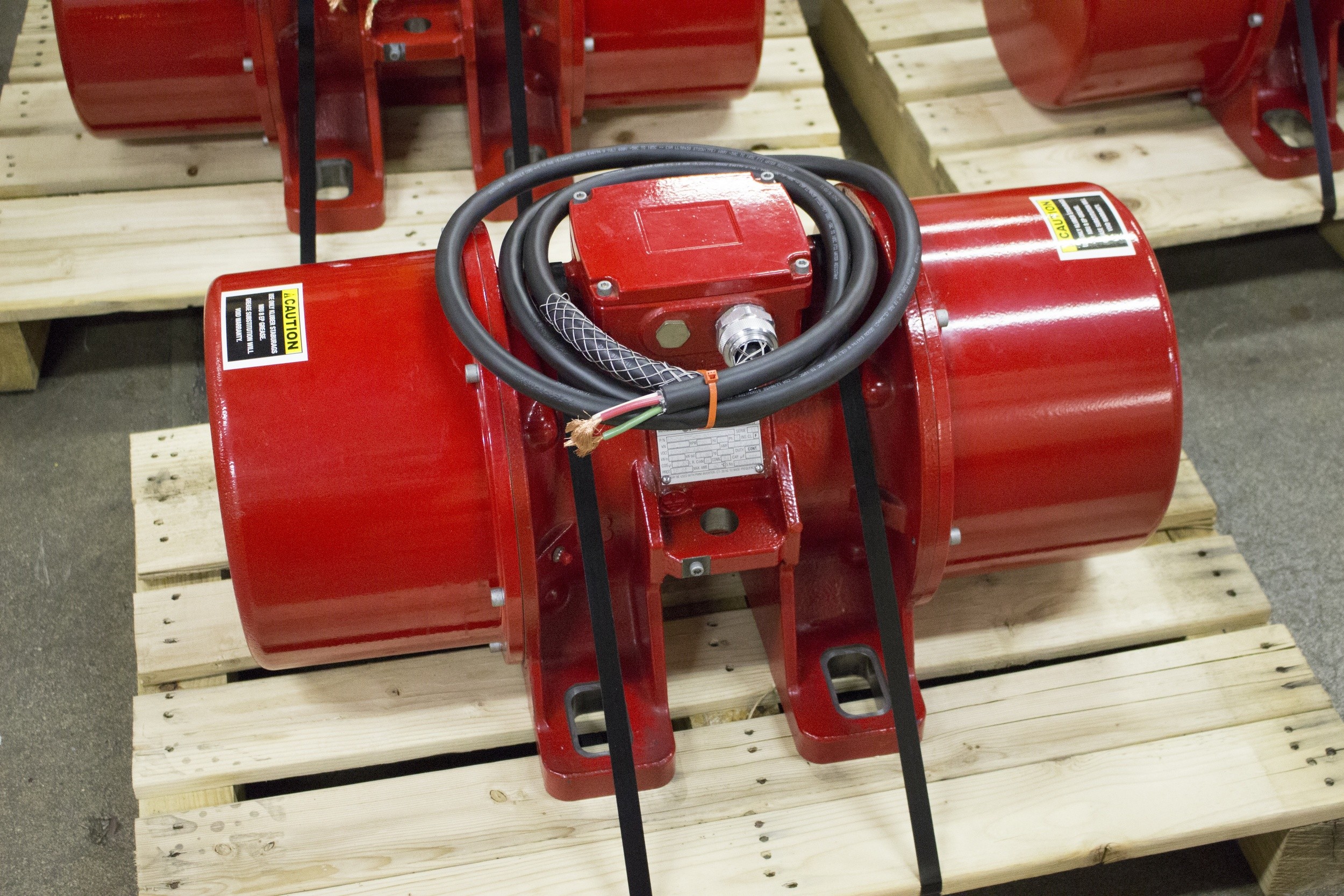

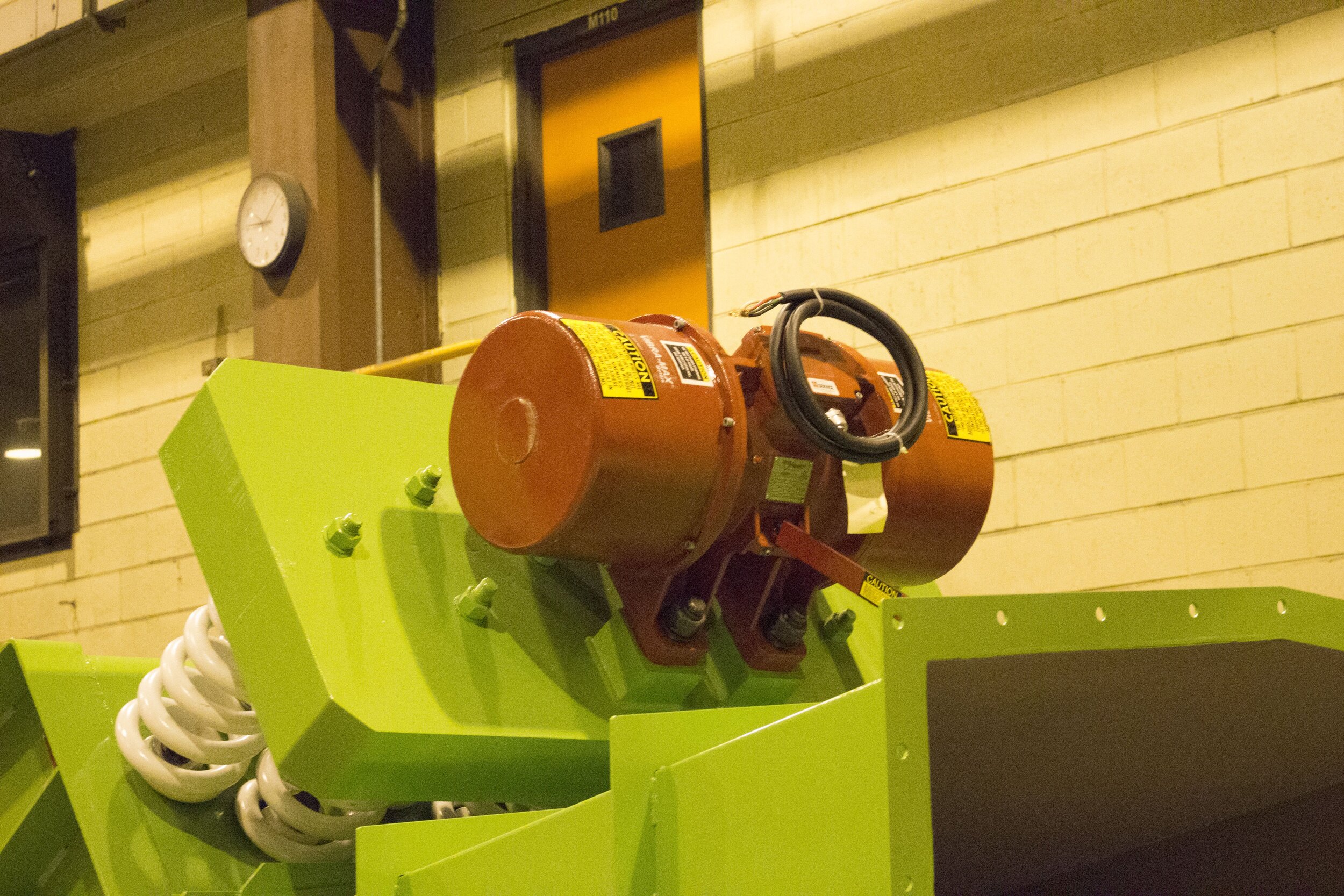

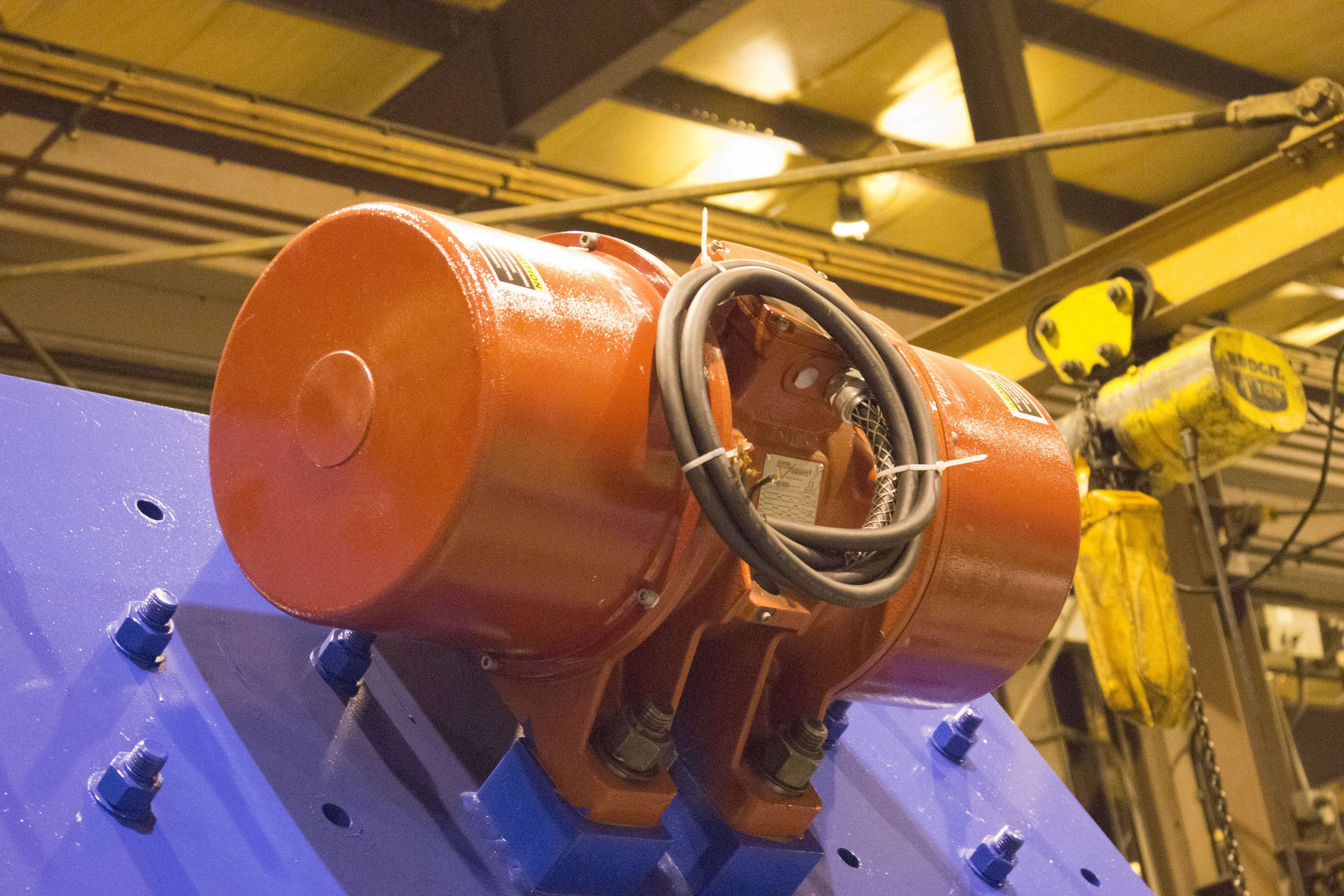

Foot Mounted Motor Features:

Similar to Double C-Flange Motor, GK’s Foot Mounted Motor is specifically designed for vibratory equipment but with a foot mounting configuration. Other features include:

  • Direct replacement.
  • Sealed covers for harsh environments.
  • Adjustable wheel force.
  • Terminal block design.
  • Easy maintenance.



Part Numbers:

10-04-126-15 MOTOR MD 15 HP 720 RPM VIBRAMAX™
10-04-128-15 MOTOR MD 15 HP 720 RPM EXP VIBRAMAX™
10-04-176-05 1.0 HP VIBRAMAX™ 720 RPM MOTOR ASSY 460V
10-04-177-02 MOTOR 2.0 HP VIBRAMAX™720 RPM GK FT 460V
10-04-177-03 MOTOR 3.0 HP VIBRAMAX™ 720 RPM 460V
10-04-177-05 MOTOR 5.0 HP VIBRAMAX™ 720 RPM 460V
10-04-42-15 MOTOR MD 15 HP 900 RPM VIBRAMAX™
10-04-43-15 MOTOR MD 15 HP 900 RPM EXP VIBRAMAX™
10-04-44-15 MOTOR MD 15 HP 900 RPM VIBRAMAX™
10-04-72-15 MOTOR MD 15 HP 720 RPM 575V VIBRAMAX™
10-04-73-15 MOTOR MD 15 HP 720 RPM 575 EXP VIBRAMAX™
10-04-401-15 MOTOR FEEDER 15 HP 750 RPM VIBRAMAX™
10-04-401-20 MOTOR FEEDER 20 HP 750 RPM VIBRAMAX™
10-04-44-10 MOTOR MD 10 HP 900 RPM VIBRAMAX™
10-04-48-10 MOTOR ATEX MD 10 HP 900 RPM VIBRAMAX™
10-04-48-15 MOTOR ATEX MD 15 HP 900 RPM VIBRAMAX™
10-04-52-15 MOTOR MD 15 HP 720 RPM VIBRAMAX™
10-04-53-10 MTR MD 10 HP 900 RPM 575V 60HZ VIBRAMAX™
10-04-53-15 MTR MD 15 HP 900 RPM 575V 60HZ VIBRAMAX™



Contact GK’s Component Part Specialists for more information on these motors, repairs, and maintenance.
