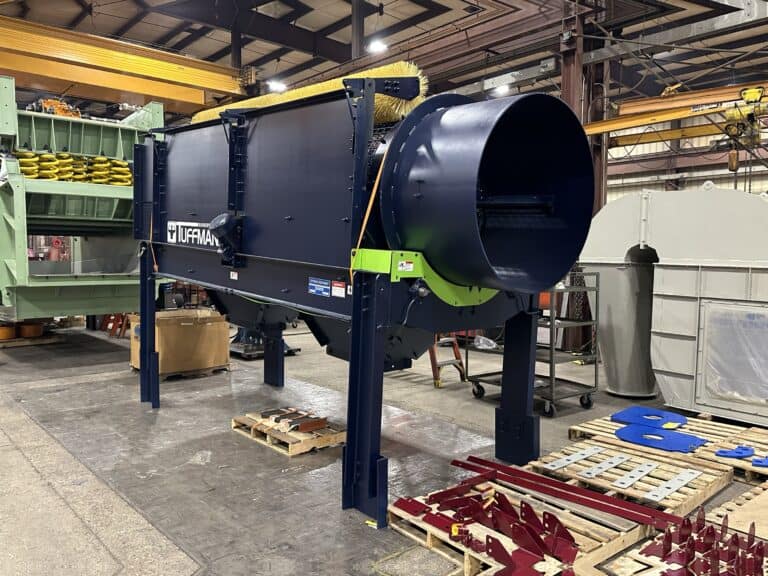

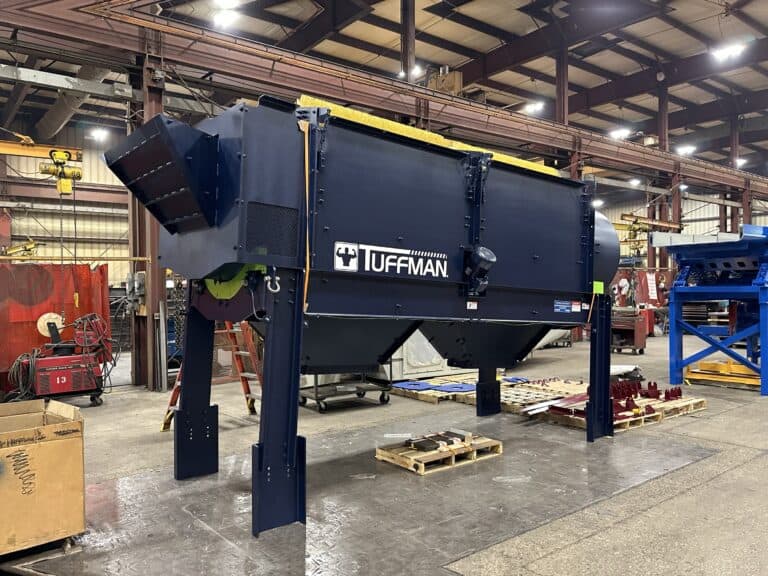

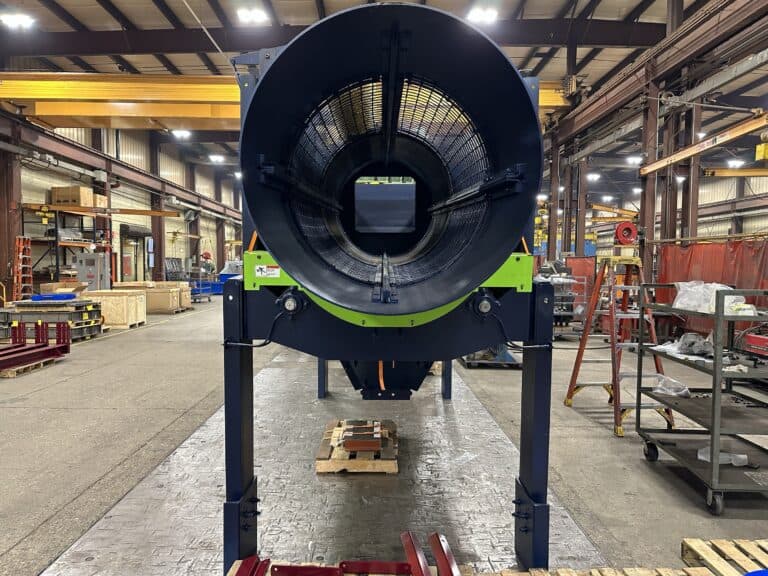

Tuffman® Rotary Trommel
Tuffman® Rotary Trommel Screen provides proper and consistent size separation and classification. Utilizing a Trommel Screen can be very useful in different industries.
Trommel screens use the rotary trommel to separate and size material, providing high output screening of fines and other minus material. As the material passes through the trommel, the smaller debris falls through the screen openings, passing the larger material on for further processing. This makes Trommel screens the best choice for pre-screening before a sorting station or other processes. Think of a Trommel screen as a large sifter that then sorts the materials by size.
Tuffman® Rotary Trommel screens are excellent for excavating, sifting, and separating materials. Our Trommel Screens are used across multiple applications. To inquire more about Tuffman trommel screens, choose a size and click the button below.
If you’re looking for additional machinery for your processing needs, check out our other available products.
- FEATURES
- BROCHURE
- SPECIFICATIONS
- APPLICATIONS
- OPTIONS
- FAQ
FEATURES
- Trommel screens are available in a variety of diameters and lengths. Sizes range from (3’) diameter x (10’) long to (8’) diameter x (30’) long.

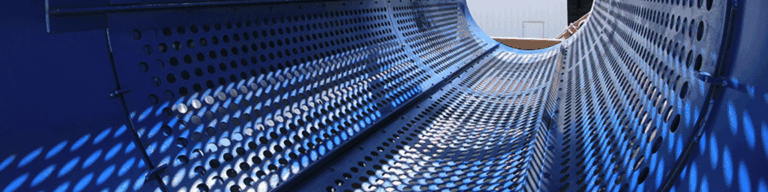

- Wire mesh screen and perforated plate screen options, depending on the application.
- Heavy-duty frame with 4 (four) support legs and adjustable feet for a 0-4 degree decline.
- Chain and sprocket drive system with a body that rolls on polymer caster wheels.
- 3-phase 460 volt electric motor.

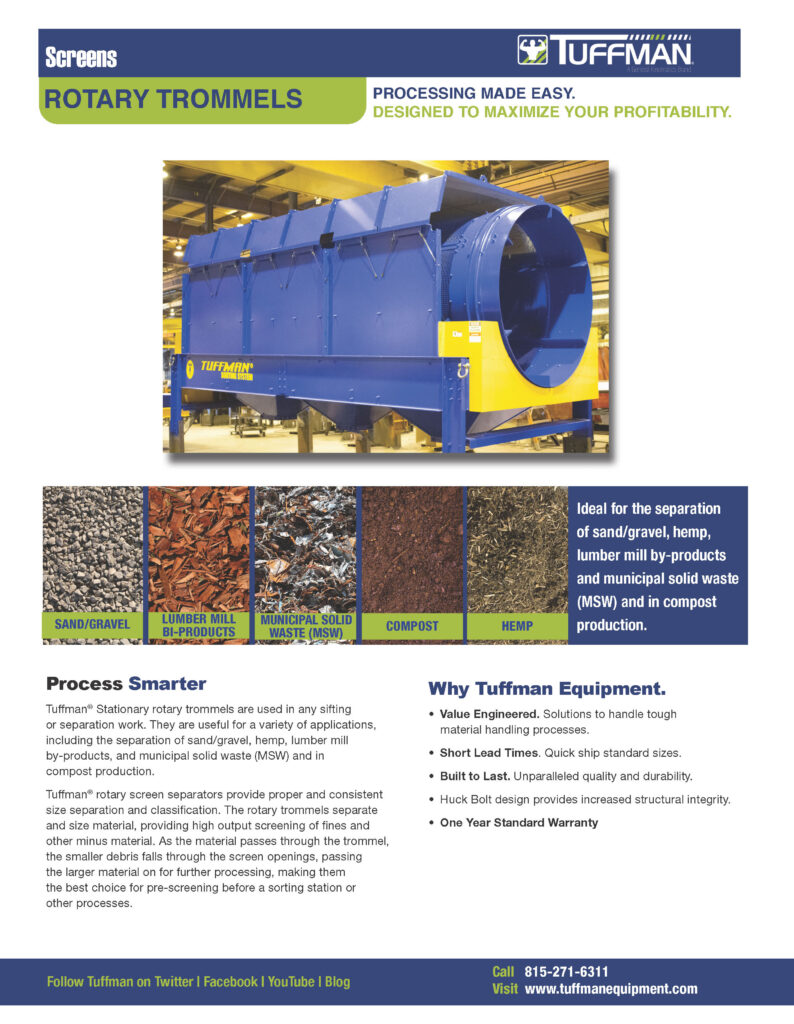

BROCHURE
SPECIFICATIONS
| Model | Diameter | Length | Screen Sections | Rows of Flights | Chutes Underneath | Motor Size | Estimated TPH |
| 310 | 3′ | 10′ | 1 | 3 | 1 | 5 HP | 20 |
| 415 | 4′ | 15′ | 2 | 4 | 2 | 5 HP | 40 |
| 618 | 6′ | 18′ | 3 | 4 | 3 | 10 HP | 70 |

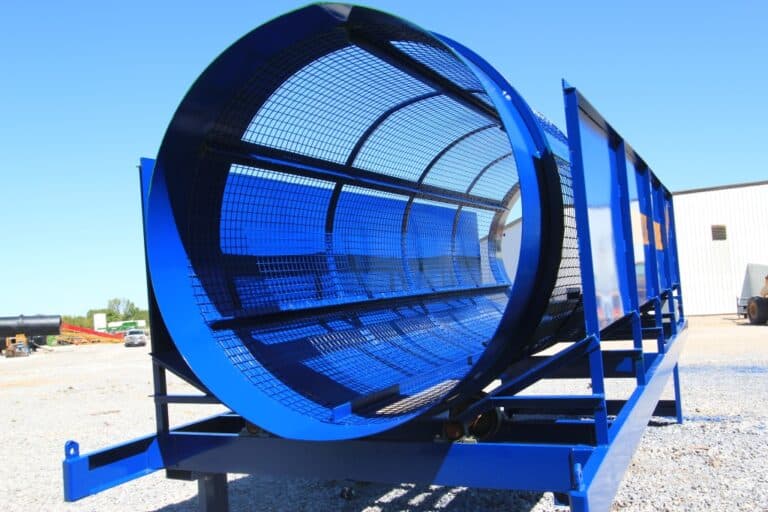

| 722 | 7′ | 22′ | 3 | 5 | 3 | 10 HP | 105 |
| 822 | 8′ | 22′ | 3 | 5 | 3 | 10 HP | 120 |
| 830 | 8′ | 30′ | 3 | 5 | 3 | 10 HP | 180 |
APPLICATIONS
Tuffman® Stationary rotary trommel screens are used in any sifting or separation work and are useful for a variety of applications, including:
- Municipal solid waste (MSW)
- Hemp/cannabis
- Aggregates: sand, gravel & rock
- Lumber mill by-products
- Debris
- Topsoil
- Glass
- Compost
- Minerals
- Wastewater
- Sludge
- Construction and demolition waste (C&D)
OPTIONS
- Feed chute
- Feed conveyor
- Discharge chute
- Discharge conveyor
- Fines discharge chute
- Fines discharge conveyor
- Custom screen sizes
- Bolt-in screens
- Removable dust enclosure
- Cleaning brushes
- Custom discharge height
- Variable frequency drive
FAQ
Frequently Asked Questions
What size are trommel screens?
Trommel screens range in lengths and diameters as different jobs require different specifications. Sizes range from (3’) diameter x (10’) long to (8’) diameter x (30’) long.
How does a trommel screen work?
The rotating drum spins the material and sifts it through different-sized screens, sorting the materials by size as needed.
What is the design of a trommel screen?
Trommels are rotating screens within a cylindrical tube. Trommels are open on both ends and may have a small incline so the material can move through, paired with the rotating screen. The screens can be made of a plate with holes in it, a wireframe, or other materials depending on materials that need sorting.
