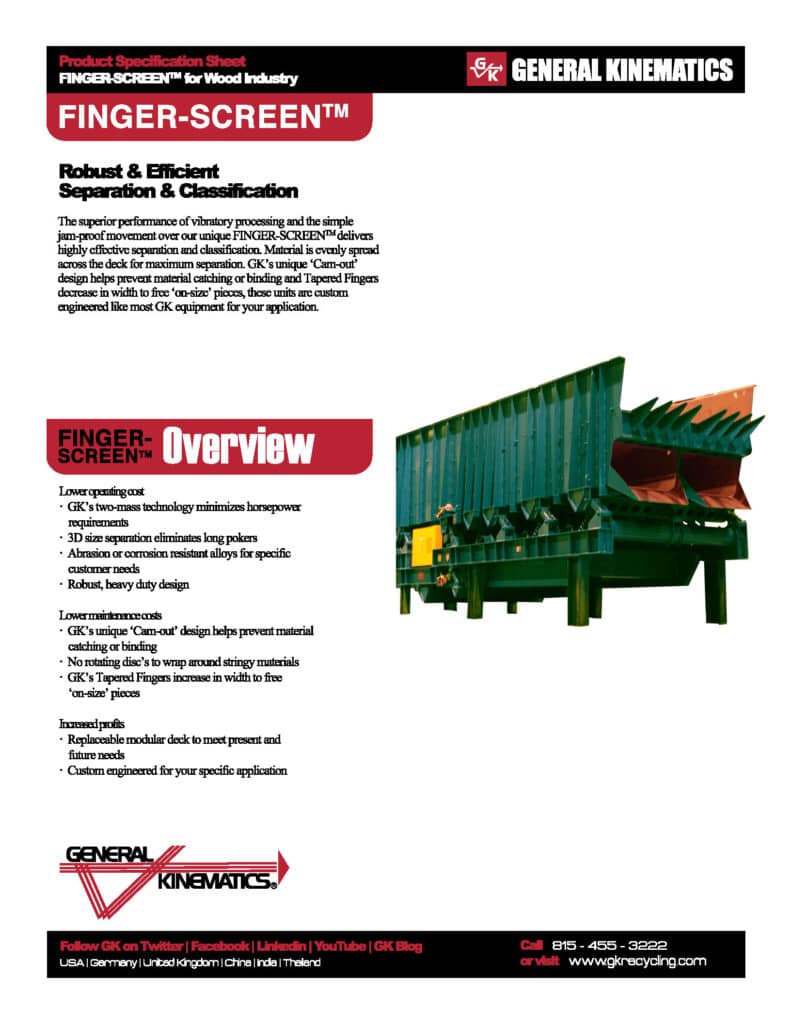

FINGER-SCREEN™ Vibratory Separator for Wood

general-kinematics-finger-screen

General Kinematics non-binding FINGER-SCREEN™ Vibratory Separator for Wood has proven to be highly successful in a wide range of applications that are prone to problems common to conventional wire mesh screening surfaces.

The superior performance of vibratory processing and the simple jam-proof movement over our unique FINGER-SCREEN™ Vibratory Separator delivers highly efficient separation and classification. The units vibrating motion spreads material evenly across the deck for maximum separating efficiency. Multiple size separating decks enhance classification while staggered finger positions help to prevent material bypass. Separation performance is enhanced as material freely cascades through the unit — with less “trapping”.

The result: fast, smooth continuous material flow throughout the entire separation and classification process.

The FINGER-SCREEN™ Vibratory Separator is available in standard sizes with widths up to 96 inches (2400mm) and custom sizes engineered based on your application.

Successful separating and classifying applications include:

  • Bio-mass
  • Wood Pellets
  • Mulch
  • Green waste
  • Oriented Strand Board (OSB)
  • Landscaping materials

Features:

  • Unique 3D sizing of wood bark materials.
  • Vibratory motion evenly spreads material for maximum classification efficiency.
  • Staggered fingers prevent material bypass.
  • Cascading material flow helps separate entrapped items.
  • Unique “cam-out” surface helps eliminate catching and binding.
  • Tapered fingers gradually classify and free tangled materials.
  • Open below deck design permits “free fall” of material to lower collecting deck.
  • Custom-engineered to meet your specific classification requirements.
  • Modular deck construction permits easy deck replacement.
