Case Study: Custom Designed Conveyor Drive

 by General Kinematics,

Challenge
A Southern US Steel Fabricator was in need of a low headroom conveyor to capture small scrap sections from their cutting tables. Existing hoppers and a short aisle for scrap collection did not allow for standard height vibratory conveyors. Belt conveyors were not permitted due to sharp steel sections.  When GKC offered to look at low headroom design, the customer became concerned about any type of conveyor drive that could be difficult to access. Furthermore, the opening through which the conveyor could be installed left no space for outboard machinery such as drive motors or gear boxes.
Approach
General Kinematics evaluated the customers requirements and developed a drive concept to fit the application. Using customer feedback to address issues in an orderly fashion, all points of concern were addressed with their engineering and production personnel.
Solution

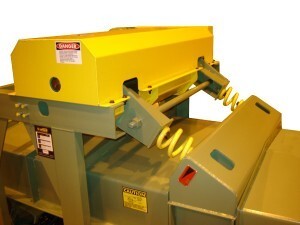

Using CAD drawings of the customer facility, GKC Engineering developed a rectangular conveyor trough and platform overhead drive combination.  This allowed the conveyor body and base to be installed beneath the low hoppers, and then the stand alone drive assembly could be positioned and bolted to the trough.  Shipping the conveyor to the job site in two modular portions allowed for minimal field assembly time.



Results
Installation time was reduced from the original estimates.  Vibrating hoods and rubber seals eliminated floor spillage.  Manual floor cleaning is no longer required.  Inspection and lubrication of drive bearings is simple and fast.
