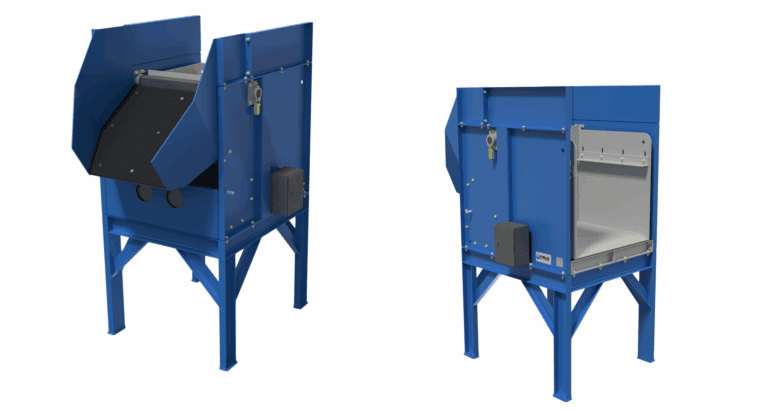

Hydraulic lifting / tilting device

Cyrus equipment can be modified for your company’s needs. If you need a lifting & tipping device custom-made for your specific application, contact our team, and we’ll help you achieve your material handling goals!

  • BENEFITS
  • TECHNICAL INFO
  • APPLICATIONS

BENEFITS

  • Tilt angles of approximately 165º
  • Safety features for operators
  • Food safe
  • Ergonomic solution for emptying containers

Technical INfo

  • Container Volume: 1 m3
  • Load Capacity: 3500 kg
  • Drive Type: Chain Drive
  • Lifting/Tilting Speed: ca. 15 cm/s
  • Lowering/Tilting Speed: ca. 15 cm/s
  • Dimensions (L x W x H): 3200 x 2900 x 8500 Including Swivel Range
  • Dimensions, Container (L x W x H): 1000 x 1000 x 680
  • Total Weight: Approx. 8300 kg

APPLICATIONS

  • Filling
  • Loading Packaging Plants
  • Furnace Feeding
  • Shredder Feeding
  • Trash Tipping
