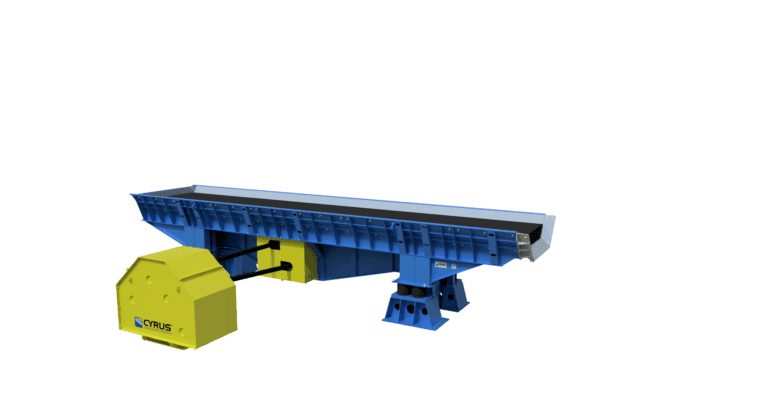

Vibrating trough feeder with unbalanced motor
Cyrus Equipment
Cyrus Equipment
-
Crusher Pre-Separation Screen
-
FlipWave™ Flip Flow Screen
-
Hydraulic lifting / tilting device
-
Mobile charging machine
-
Vibratory Feeding Conveyors for Size Reduction
-
Cyrus Casting Cooling Conveyors
-
Cyrus Vibrating Trough Conveyor
-
Apron Conveyor
-
Vibrating Trough Conveyor
-
Vibratory Bowl Feeder
Vibrating Feeders
Streamline Material Feeding
Vibrating feeders with unbalanced drives are widely used due to their simple basic construction in many industries and applications. They are used to transport various materials to be conveyed over shorter distances. The range of applications varies from discharging bulk materials from bunkers and silos to conveying foundry sands and removing metal scrap from shredders or shears. We customize our feeders to meet your specific project requirements regardless of application and seamlessly integrate them into your existing facility’s footprint. Because our Vibrating Trough Feeders are so flexible, we offer a wide variety of options for customization.
Here are a few general specifications about the base product:
- Long service life, high operational reliability, even in tough applications
- Minimum operating costs through low-maintenance operation
- Wide range of applications through countless variations and options
- Sophisticated technology, proven in thousands of applications
- Good value for money
- CYRUS boasts significant experience from delivering over 4,000 vibrating feeders with unbalanced drives. We offer customized solutions to meet your needs.
Please contact us, and we will be happy to discuss how our Vibrating Trough Feeder can be tailored for your business.
- FEATURES
- TECHNICAL INFO
- APPLICATIONS
FEATURES
Some of our options for customization include:
- Influencing of conveying speed by frequency control of drives
- Electronic gear for adjusting the vibrating angle during operation (details)
- Exchangeable lining made of wear-resistant special steel
- Heavy design, suitable for explosions in the shredder
- Stop rails and safety catches
- Vibration monitoring via acceleration sensor
- Trough bottom heating to avoid caking
- Bunker discharge chute
- Needle slider
- Hoods and covers
- Dust seals
Don’t see an option you’re looking for? Contact us, and we’d be happy to assist you in customizing the perfect solution for your feeding needs.
Technical INfo
Technical Data
Material: fine-grained bulk material to piece goods
Capacity: usually up to 1.000 t/h, in rare cases also above
Design size: trough areas to approx. 3.000 mm width and 8.000 mm length
Arrangement: sloped, horizontal, slightly inclined
Technology
The trough feeder operates by activating its unbalanced mass motor. The mode of vibration of the trough can be influenced within wide limits by design, arrangement, and quantity of drives.
Depending on its application, CYRUS vibrating feeders with unbalanced drives can use one of several different types of drives:
- Vibration motor
- Circular drive
- Cell drive
- Straightening exciter
We design our vibrating feeders to operate continuously. The hardy welded and screwed vibration-resistant design is typically made from S235JR grade steel. If you are going to be transporting abrasive materials, we offer the option to use wear-resistant steel as well.
APPLICATIONS
Vibrating feeders with unbalanced drives are an excellent choice in any operation where bulk materials are conveyed over shorter distances. CYRUS’ Vibrating Trough Feeders can be designed in a trough shape or a contained tube depending on the application.
Typical areas of application include:
- Discharge of bulk material from bunkers and silos
- Charging of crushers, mixing machines, furnaces, weighing machines, screening machines, etc.
- Conveying of foundry sand from cast/sand separation to sand preparation
- Discharge of metal scrap under shredder and behind scrap shears
- Feeding to magnetic drums for separating metallic parts during material flow
- Material transport in processing and sorting plants
Connecting multiple of our vibrating feeders can help overcome long conveying distances. However, if you want to avoid transfer points and need a longer conveying length, we suggest using our vibrating feeders with slider-crank drive. These feeders can be custom-designed in lengths up to 50 meters.
