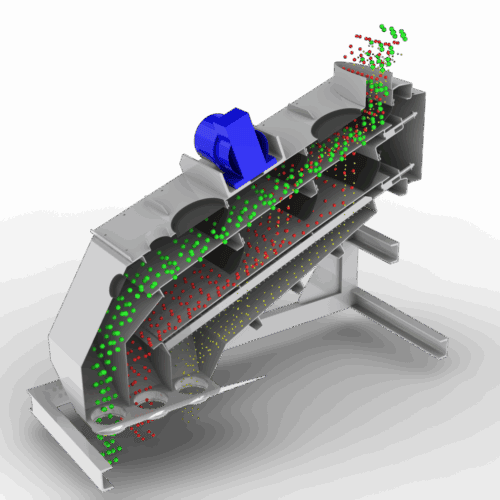

Circular motion vibrating screen
-
Cyrus Casting Cooling Conveyors
-
Cyrus Vibrating Trough Conveyor
-

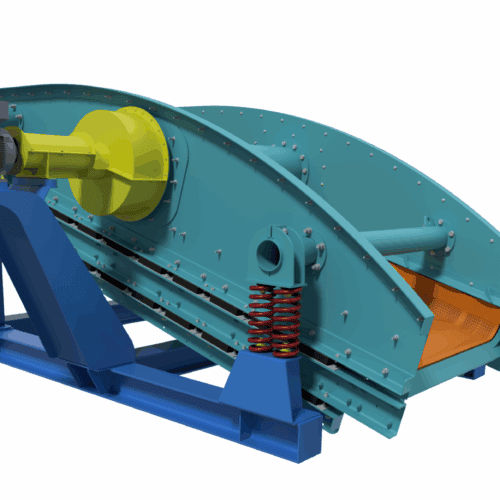

FlipWave™ Flip Flow Screen
-

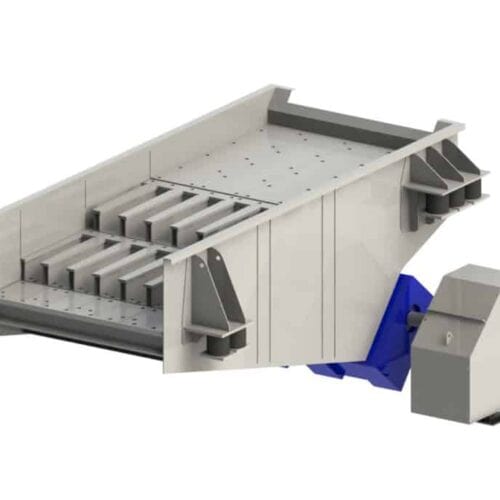

Crusher Pre-Separation Screen
-
Hydraulic lifting / tilting device
-

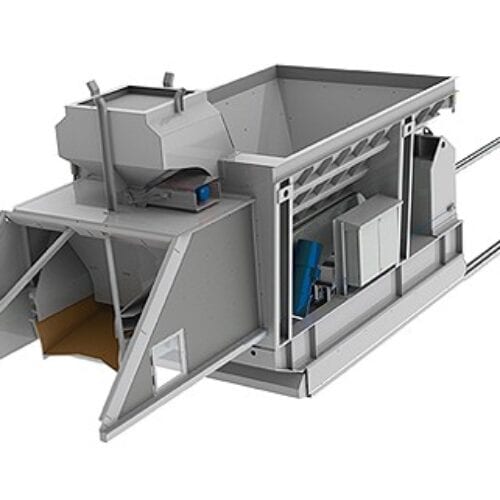

Mobile charging machine
-

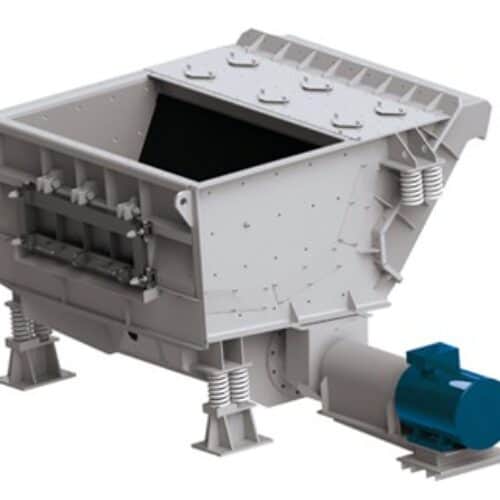

Vibrating Lump Crusher
-
Vibrating Trough Conveyor
-

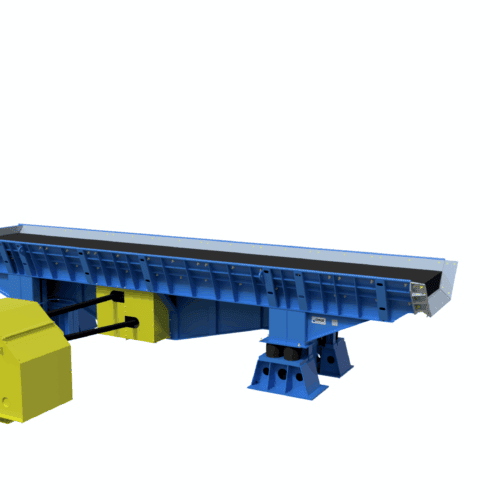

Vibrating trough feeder with unbalanced motor
-

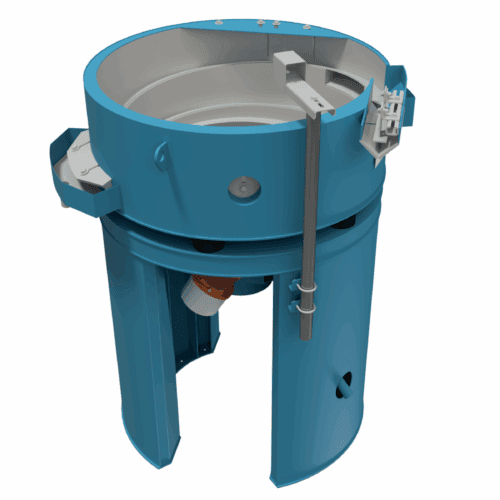

Vibratory Bowl Feeder
-

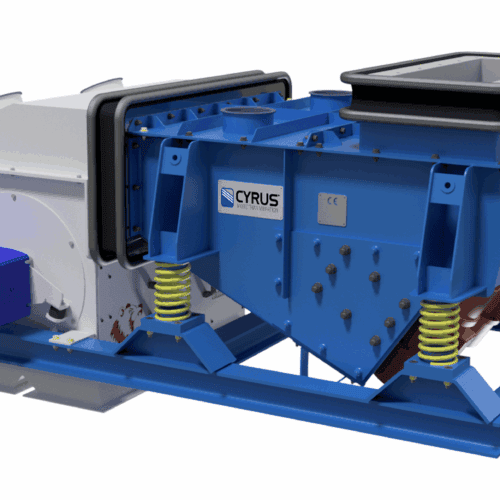

Vibratory Feeding Conveyors for Size Reduction
Vibralift Vertical Conveyor
Vibralift is a material handling system using directed, vertical vibrations to convey the media upwards in a closed shaft. The lifting shaft does not contain any moving parts requiring regular maintenance or replacement. Furthermore, the Vibralift makes it possible to convey products with temperatures up to 350° C (e.g. sand in a melting shop).
- FEATURES
- BENEFITS
- TECHNICAL INFO
- APPLICATIONS
FEATURES
- Compact design
- No revolving parts (goods conveyed by vibration)
- Dust-proof design
- High wear-resistance
- High conveying capacity up to 13 m³/ h, depending on size
- Alternative option to spiral, Z-conveyor and bucket elevator
BENEFITS
- Low operating costs
- High operational reliability
- Long service life
- Good value for money
- No extra costs for dust guard
- Small footprint
- Handles hot materials of up to 350° C
Technical INfo
- Conveying: Vertical
- Materials handled: Foundry sand
- Product temperature: approx. 350°C
- Lifting height: 3.200 mm
- Drive: 2 vibration motors
- Drive position: underlying
- Conveying capacity: approx. 15 t / h
- Dimensions: width / conveying capacities
- 200 mm/ 2.5 m3/h, 300 mm/ 3.5 m3/h,
- 400 mm/ 5.0 m3/h, 500 mm/ 6.5 m3/h,
- 600 mm/ 7.5 m3/h, 700 mm/ 8.5 m3/h,
- 800 mm/10.0 m3/h, 1.000 mm/13.0 m3/h
- Conveying height from 1.500 mm to 4.500 mm
- Drives: 2 unbalance motors
- Drive positions: top or bottom
- Materials handled: grainy, up to 15 mm, pourable and dry
- Handles hot materials of up to 350 C
APPLICATIONS
- Continuous conveying, vertical conveying
- Feed
- Foundry
- Pharmaceuticals / chemicals
- Steel mills
- Stone/sand/gravel
