scrap 1CHALLENGE

An East coast scrap processor needed a better way to sort the non-ferrous materials coming through their facility. The existing process was disadvantageous and consisted of piling the material on the ground to sort through by hand.

APPROACH

The General Kinematics team assisted in developing a two-part system that would be able to handle both the metering and sorting capabilities of the facility efficiently.



SOLUTION

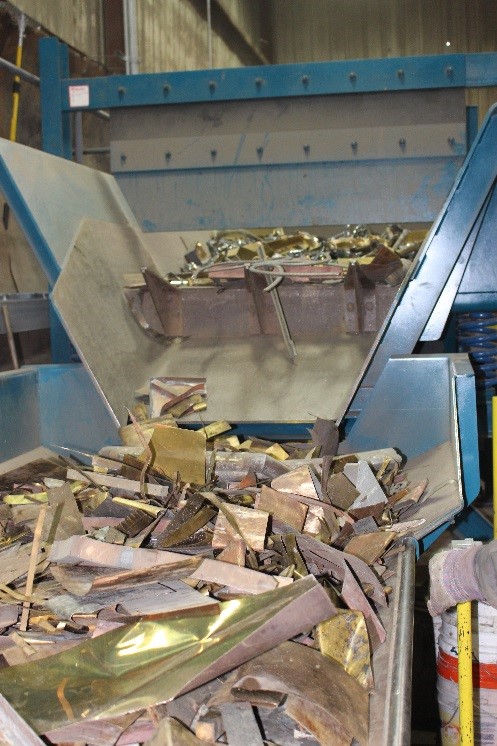

Metering Feeder: The Vibratory Metering Feeder installed accepts the feed from a tote box tipper. It is manufactured with a special reinforced load plate to withstand the large heavy drop of the scrap metal on the feed-end. The Feeder is also lined with AR400 removable liners for maximum wear and life. The vibratory action of the Feeder “levels” the pile of scrap metal and delivers a “metered” feed to the Vibratory Sorting Conveyor. The Feeder also has a “strike-off” or “knock-down” assembly to keep the level of any pile below a certain level making the flow to the Vibratory Sorting Conveyor more even and consistent.



scrap3

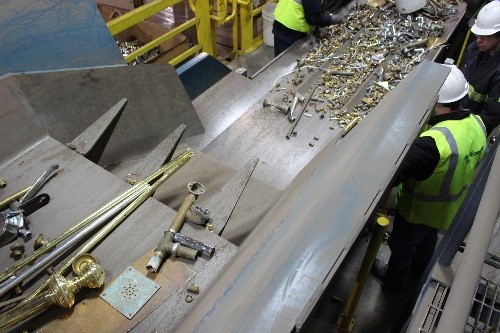

Vibratory Sorting Conveyor:
The Vibratory Conveyor has a horizontal stroke action to “shuffle” the metal scrap along the length of the machine to easily allow operators to pick specific metallurgy. The horizontal “shuffling” action also helps reduce the noise level of the material from “bouncing” on the steel deck surface. The Vibratory Conveyor is lined with AR400 removable liners for maximum wear and life. The Vibratory Conveyor will keep the scrap metal spread out on the deck surface making it easier for pickers to identify and pick the designated items.

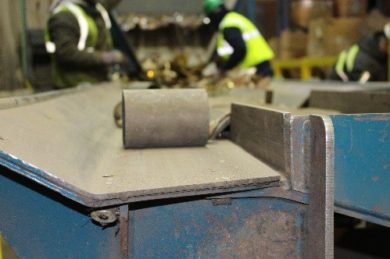

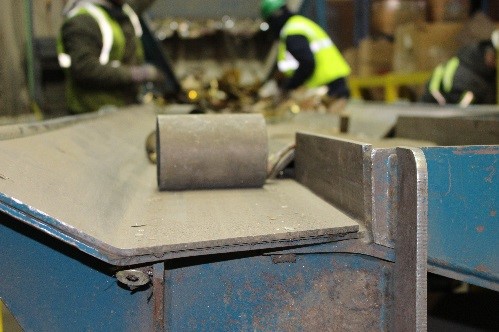

scrap4RESULTS

The GK equipment has been running for over six months with no issues. The Vibratory Conveyor is positioned at the optimal height for maximizing ergonomic motion by the manual pickers and has greatly improved their overall process and workflow.
