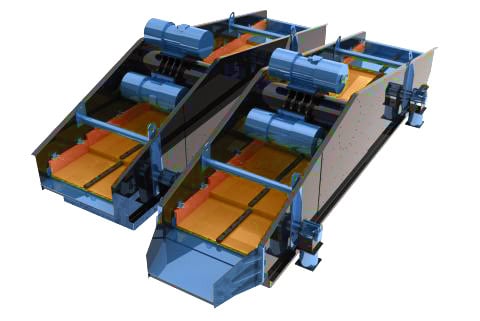

Linear Motion Vibrating Screen
Screening machines are material handling systems with a sorting feature using vibration drives to classify and convey material. Linear vibrating screens operate on directed vibrations selected to suit the product and the given installation conditions. Screening machines can classify different particle sizes at the same time. The screen linings are selected in accordance with the application.
- FEATURES
- BENEFITS
- TECHNICAL INFO
- APPLICATIONS
features
- Compact design
- Dust-guarded design possible
- High wear-resistance
- High screen performance depending on size and design
- Alternative application as a drainage screen
benefits
- Low operating costs
- High operational reliability
- Long service life
- Good value for money
- Applications
Technical INfo
- Drainage screen Type LS 1.300 x 6.200
- Different sizes and screen performances
- Optional ball peening attachments for the cleaning of textiles
- Different screen linings: PU, spring steel wire, VA vanadium steel, slotted hole screens, perforated plates etc.
- Reference installations
- Screen width: 1.300 mm
- Screen length: 6.200 mm
- Drainage capacity: ~120 t H²O/h
- Float drainage: wedge wire screens
- Drive: two vibration motors
- Shifting: on helical compression springs
- Use: recycling industry after a sink-swim system
applications
- Screening
- Sorting
- Protective screening
- Separation
- Drainage
